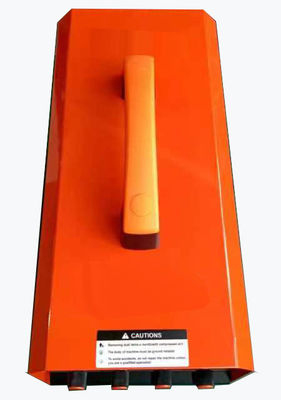

TW-T250AR DC argon arc welding machine
Productdetails:
| Plaats van herkomst: | Chongqing, China |
| Merknaam: | GENWELD |
| Modelnummer: | TW-T250AR lasser |
Betalen & Verzenden Algemene voorwaarden:
| Min. bestelaantal: | 100 |
|---|---|
| Verpakking Details: | 530*315*430mm |
| Levertijd: | 5-8 werkdagen |
| Betalingscondities: | T/T |
|
Gedetailleerde informatie |
|||
| Brandstoftype: | Benzine | Looptijd: | 8 uur |
|---|---|---|---|
| Dimensie: | 530x330x560mm | Verpakking aantal: | 188/480 sets 20GP/40HQ |
| Nominale uitgangsstroom: | 9,5A/18,3A | Capaciteit brandstoftank: | 5L |
| Netto gewicht: | 18 kg | Brandstoftank: | 4L |
| Maximaal vermogen: | 4,0 KW | Garantie: | 1 jaar |
| Koelsysteem: | Luchtgekoeld | Startmethode: | Elektrisch/handmatig |
| Looptijd: | 6u | Ytpe starten: | Terugslag |
| Gewicht: | 25 kg | ||
Productomschrijving
TW-T250AR DC TIG welding machine
Product model:
1. Wide voltage input 1ph/2ph 160~500V,
2. Maximum input power (TIG/MMA): 8.6/10.5kW,
3. TIG welding input current range: 10-250A, duty cycle 100%,
4. Manual welding input current range: 10-215A, duty cycle 80%, required current
Table shows 10-250A (virtual mark).
5. Manual welding: 4.0 electrodes can be continuously welded (duty cycle 100%/180A/27.2V)
6. Input power frequency: 60Hz,
7. Circuit breaker voltage: 62V,

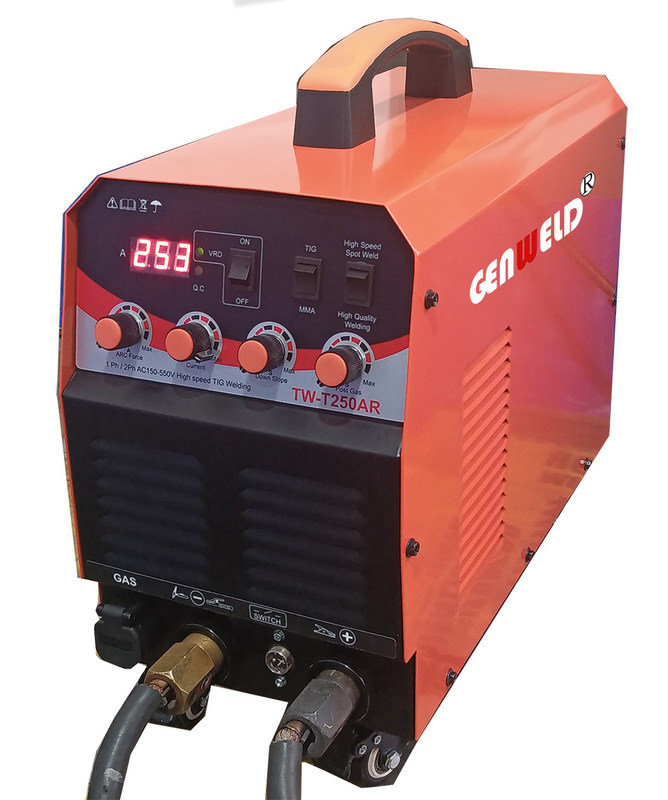

8. 4 knobs on the panel: current adjustment/thrust adjustment/attenuation adjustment/lag gas adjustment,
9. Large chassis 435*203*420mm,
10. With high-speed argon arc welding (switch),
11. With VRD switch,
12. With wheels (2 with brakes, 2 without brakes), the wheels must be installed on the welding machine.
13. With buzzer alarm,
14. Machine cover LOGO die embossing,
15. Does not include power cord and plug, and can be assembled for free according to the supplier's requirements,
16. Packing size: 530*315*430mm.
